Product details
Performance characteristics

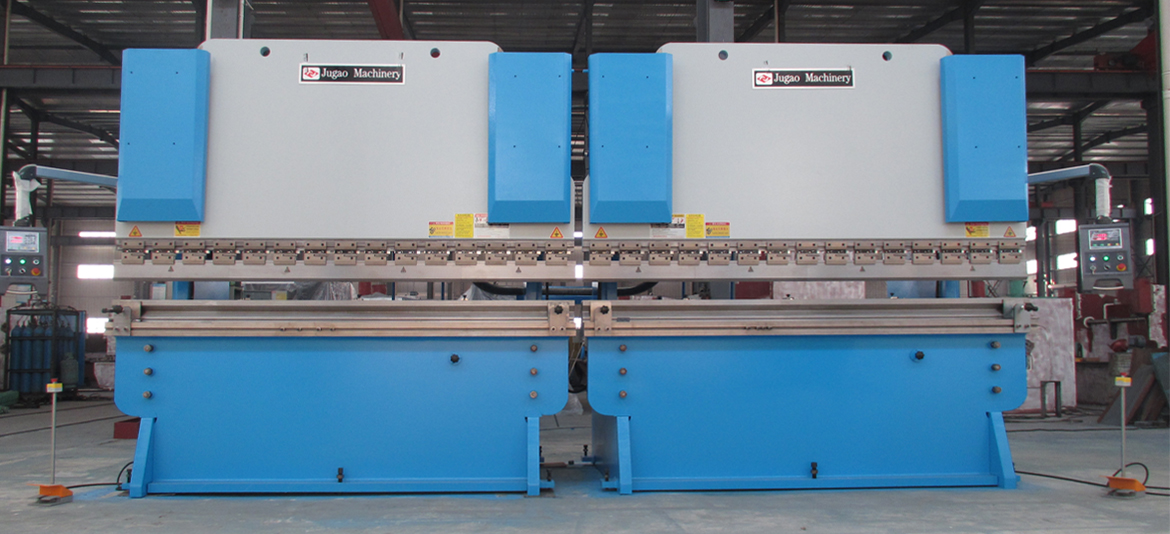

Two WC67K Series in same specification are choosen as main machine with double motor linkage synchro-device, which may work together to process overlong workpiece or operate separately to increase production efficiency.
Product parameters
No | Model | Preesure (KN) | Max bending width(mm) | Distance between cylinder(mm) | Throat depth (mm) | Ram stock (mm) | Max open height(mm) | Motor (kw) | Max bending thickness X Length (mm) |
1 | 2WC67Y-300TX6000 | 6000 | 12000 | 5130 | 710 | 200 | 950 | 2X37 | 12X12000 |
2 | 2WC67Y-400TX6000 | 8000 | 12000 | 5140 | 710 | 250 | 950 | 2X37 | 17X12000 |
3 | 2WC67Y-500TX6000 | 10000 | 12000 | 5150 | 900 | 300 | 1100 | 2X45 | 19X12000 |
4 | 2WC67Y-600TX6000 | 12800 | 12000 | 4000 | 1100 | 300 | 1200 | 2X55 | 20X12000 |
5 | 2WC67Y-800TX6000 | 16000 | 12000 | 4000 | 1100 | 400 | 1200 | 4X37 | 23X12000 |
6 | 2WC67Y-800TX7000 | 16000 | 14000 | 5030 | 1100 | 400 | 1200 | 4X37 | 22X14000 |
7 | 2WC67Y-800TX8000 | 16000 | 16000 | 5030 | 1100 | 400 | 1200 | 4X37 | 20X16000 |
8 | 2WC67Y1200TX7000 | 24000 | 14000 | 4500 | 1600 | 400 | 1250 | 4X45 | 28X14000 |
9 | 2WC67Y-1200TX7500 | 24000 | 15000 | 5000 | 1600 | 400 | 1250 | 4X45 | 27X15000 |
10 | 2WC67Y-1200TX8000 | 24000 | 16000 | 5030 | 1600 | 400 | 1250 | 4X45 | 26X16000 |
11 | 2WC67Y-1600TX8000 | 32000 | 16000 | 5210 | 1600 | 400 | 1250 | 4X55 | 29X16000 |
12 | 2WC67Y-2000TX8000 | 40000 | 16000 | 5210 | 1600 | 400 | 1250 | 4X55 | 32X16000 |
13 | 2WC67Y-2400TX8500 | 48000 | 17000 | 6000 | 1600 | 400 | 1250 | 4X75 | 35X17000 |
