Product details
Performance characteristics

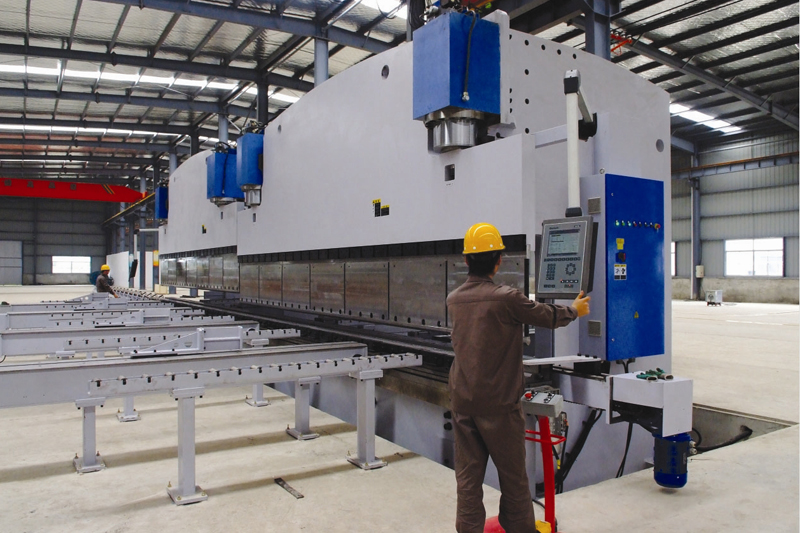

1.Tandem Series s allow for the combination of two JUGAO heavy duty press brakes in a synchronised tandem
2.Typical industries served include earth moving, lighting columns, cranes, aerospace, transport and defence.
3.New intuitive and intelligent Touch PC based control ensures reduces ‘Art to Part’ time and optimises bending results
Product parameters
No | Model | Preesure (KN) | Max bending width(mm) | Distance between cylinder(mm) | Throat depth (mm) | Ram stock (mm) | Max open height(mm) | Motor (kw) | Max bending thickness X Length (mm) |
1 | 2WE67K-300TX6000 | 6000 | 12000 | 5130 | 710 | 200 | 950 | 2X37 | 12X12000 |
2 | 2WE67K-400TX6000 | 8000 | 12000 | 5140 | 710 | 250 | 950 | 2X37 | 17X12000 |
3 | 2WE67K-500TX6000 | 10000 | 12000 | 5150 | 900 | 300 | 1100 | 2X45 | 19X12000 |
4 | 2WE67K-600TX6000 | 12800 | 12000 | 4000 | 1100 | 300 | 1200 | 2X55 | 20X12000 |
5 | 2WE67K-800TX6000 | 16000 | 12000 | 4000 | 1100 | 400 | 1200 | 4X37 | 23X12000 |
6 | 2WE67K-800TX7000 | 16000 | 14000 | 5030 | 1100 | 400 | 1200 | 4X37 | 22X14000 |
7 | 2WE67K-800TX8000 | 16000 | 16000 | 5030 | 1100 | 400 | 1200 | 4X37 | 20X16000 |
8 | 2WE67K1200TX7000 | 24000 | 14000 | 4500 | 1600 | 400 | 1250 | 4X45 | 28X14000 |
9 | 2WE67K-1200TX7500 | 24000 | 15000 | 5000 | 1600 | 400 | 1250 | 4X45 | 27X15000 |
10 | 2WE67K-1200TX8000 | 24000 | 16000 | 5030 | 1600 | 400 | 1250 | 4X45 | 26X16000 |
11 | 2WE67K-1600TX8000 | 32000 | 16000 | 5210 | 1600 | 400 | 1250 | 4X55 | 29X16000 |
12 | 2WE67K-2000TX8000 | 40000 | 16000 | 5210 | 1600 | 400 | 1250 | 4X55 | 32X16000 |
13 | 2WE67K-2400TX8500 | 48000 | 17000 | 6000 | 1600 | 400 | 1250 | 4X75 | 35X17000 |
