Product details
Performance characteristics

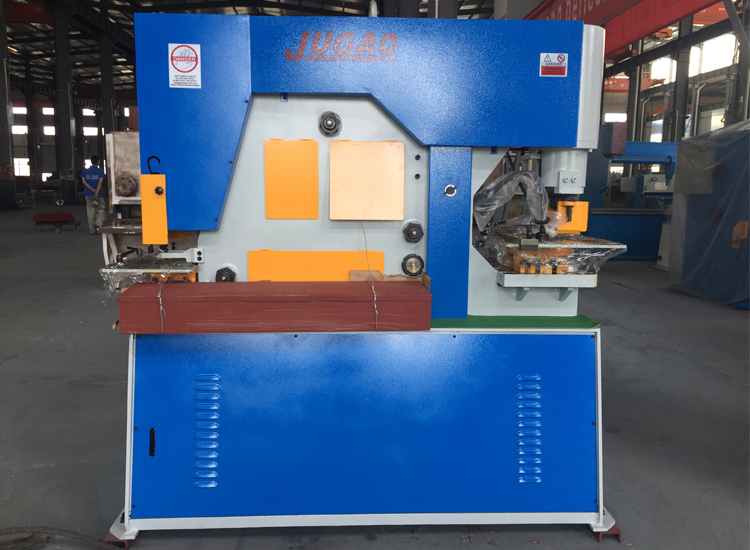

They adopt hydraulic driving system and they are the latest iron workers in our country,Various metal plate,squarebar,Round bar,angle,channel and joist can be cut,punched and notched on the machine.It is also equipped with a stop device for cutting.

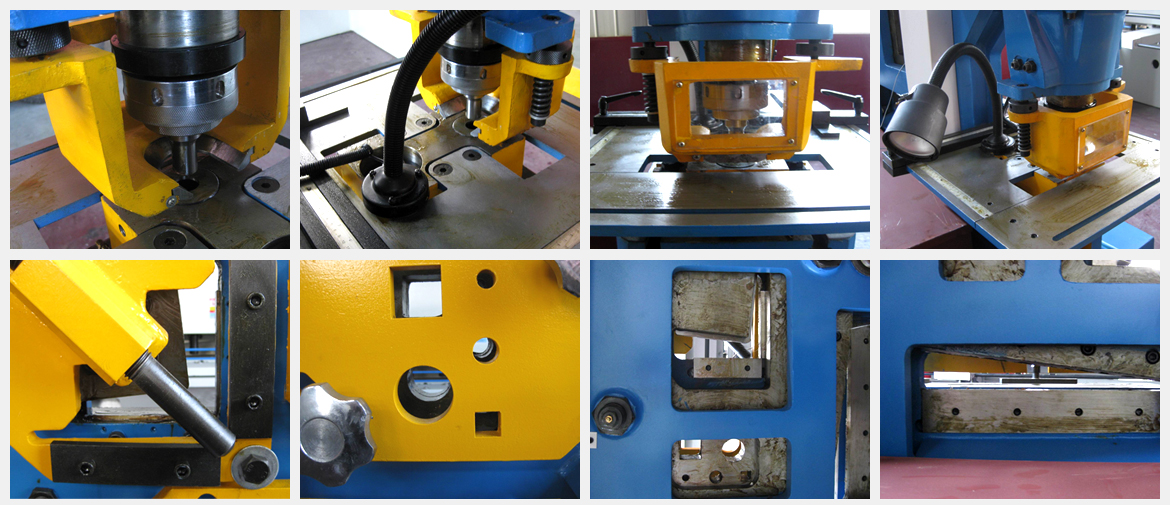

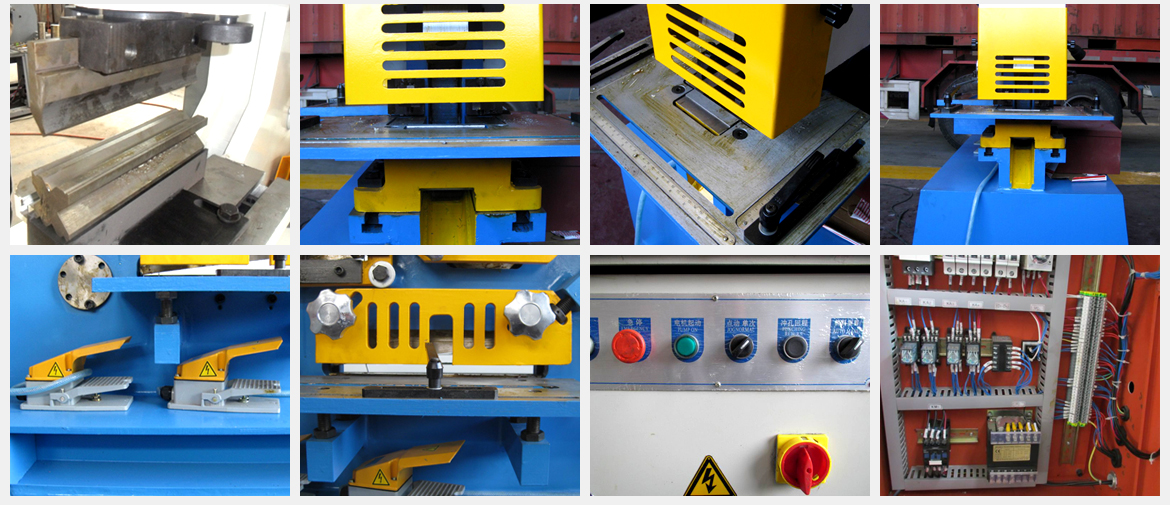

▇ GENERAL ADVANTAGES √ Q35Y series IronWorker is designed with 3D CAD software and manufactured with accurate CNC machinery. √ Q35Y series contain stations for punching, profile cutting, square and round bar profile cutting, flat sheet cutting and corner notching. Each work station provides accuracy and ease of use while ensuring safety with special covers. √ Q35Y series IronWorker is contributing your business in economic powers while increasing your production efficiency with its unique cutting technology. | ▇ ADVANTAGES √ Perfect solution for precise cuts. √ Does not require large space. √ User-friendly √ Punching, flat shearing, angle shearing and notching options which does not require your best operator. √ Minimum space requirement with compact design. √ Durable choice for your precise cutting works. √ Easy installation and training. √ State of the art rigid body, that is designed with Solidworks software in 3D, satisfied in static and dynamic stiffness, produced from mono-block st44-1 quality of steel and relieved from welding tension. √ Durable, hardened and grinded tools are renowned with quality and reliability and able to conduct accurate cuts. √ World famous compact hydraulic system, which has high credibility and is compatible with CE standards. √ SIEMENS electrical system. |
Product parameters
Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 | ||
Processing Capacity (KN) | 600 | 900 | 1200 | 1600 | 2000 | 2500 | ||
Material Tensile Strength (Mpa) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ||
Flat Shearing | Max. Shearing Capacity (thickness* width (mm) | 16×250 | 20×330 | 25×330 | 30×355 | 35×400 | 40×450 | |
8×400 | 10×480 | 16×600 | 20×600 | 25×700 | 30×750 | |||
Bar Shearing | Square Bar(mm) | 40 | 45 | 50 | 55 | 60 | 65 | |
Round Bar (mm) | 45 | 50 | 60 | 65 | 70 | 80 | ||
C-channel (mm) | 126 | 160 | 200 | 280 | 300 | 320 | ||
I-beam (mm) | 126 | 160 | 200 | 280 | 300 | 320 | ||
Angle shearing | 90° shearing (mm) | 120×12 | 140×12 | 160×14 | 180×16 | 200X18 | 200×20 | |
45° shearing (mm) | 70x8 | 70x10 | 80x7 | 80x10 | 80x10 | 80x10 | ||
Hole Punching | Max. Punching Capacity (diameter* thickness) (mm) | Φ25*16 | Φ30*20 | Φ35*25 | Φ38*26 | Φ40*35 | Φ40*40 | |
Motor (KW) | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | ||
Dimension(mm) | Length | 1650 | 1950 | 2350 | 2680 | 2800 | 3200 | |
Width | 800 | 900 | 980 | 1060 | 1260 | 1440 | ||
Height | 1780 | 1930 | 2100 | 2380 | 2420 | 2450 | ||
Weight | 1800 | 2600 | 4400 | 6600 | 7500 | 10800 | ||
Model |
Round steel |
Square steel |
Angle steel |
Ｔ steel |
H steel |
C steel | ||
90° cutting |
45° cutting |
90° cutting |
45° cutting | |||||
Section |
|
|  |  |  |  | ||
Q35Y-16 |
45 |
40*40 |
125*125*12 |
70*70*8 |
120*120*12 |
60*60*8 |
126*74*5 |
126*53*5.5 |
Q35Y-20 |
50 |
50*50 |
140*140*12 |
70*70*10 |
140*140*12 |
70*70*10 |
160*86*6 |
160*60*6.5 |
Q35Y-25 |
60 |
50*50 |
160*160*14 |
80*80*7 |
160*160*14 |
80*80*10 |
200*102*9 |
200*75*9 |
Q35Y-30 |
65 |
55*55 |
180*180*16 |
80*80*10 |
160*160*14 |
80*80*10 |
280*124*10.5 |
280*86*11.5 |
Q35Y-40 |
70 |
60*60 |
200*200*18 |
80*80*10 |
180*180*16 |
80*80*10 |
300*89*11.5 |
280*86*11.5 |
Q35Y-50 |
80 |
65*65 |
200*200*20 |
80*80*10 |
180*180*16 |
80*80*10 |
300*89*11.5 |
320*92*12 |
