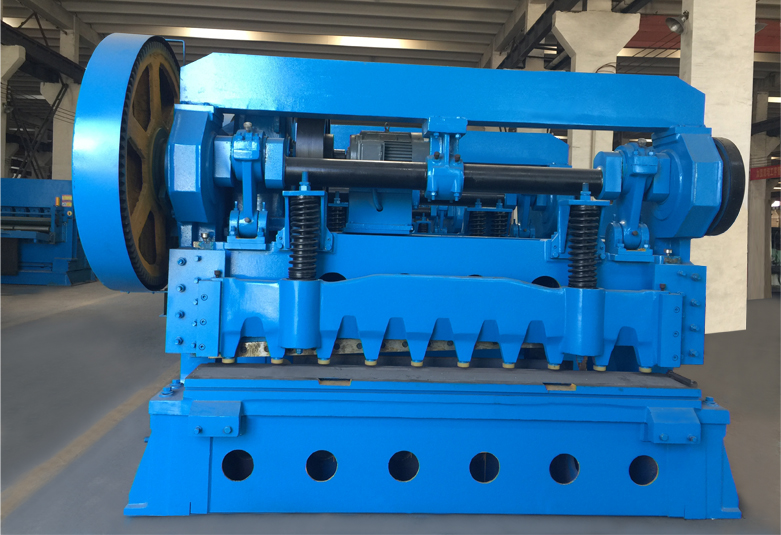

Detailed information of the mechanical guillotine shear Q11 Series
The mechanical guillotine shear Q 11 Series are of mechanical gate-mode, deep throat and sheared metal can be used directly with overload protection device. So the mechanical guillotine shear has got the patent of steel construction. This series of guillotine shears are mechanical gate-mode metal sheet shears used for straight cutting steel plate. Generally speaking, the sheared metal sheet can be used directly without any other processing. The guillotine can be operated through turn-key clutch and foot switch, which can be in both single and continuous cutting way. Besides,guillotine shearing machine is of easy access to operation and maintenance.
With the turn-key clutch and foot switch, the guillotine shearing machine can be used in single or continuous cutting way. Equipped with cast iron and top transmission structure, the guillotine shearing machine can be straight in cutting steel plate. The guillotine also has a high tensile alloyed shearing blade, one emergency stop buttons as well as a protection fence to ensure the security.
Product parameters
Model | Max. Cutting Thickness(mm) | Max. Cutting Width(mm) | Shearing Angle(°) | Distance of back gauge(mm) | Power of main motor(kw) | Overall dimensions(mm) | Weight(kg) |
13×2500 | 13.0 | 2500 | 3° | 700 | 15 | 3680×2330×2500 | 13300 |
16×2500 | 16.0 | 2500 | 3° | 700 | 22 | 3680×2800×2450 | 14500 |
20×2500 | 20.0 | 2500 | 3° | 750 | 22 | 3950×2800×2900 | 20000 |
