Product video

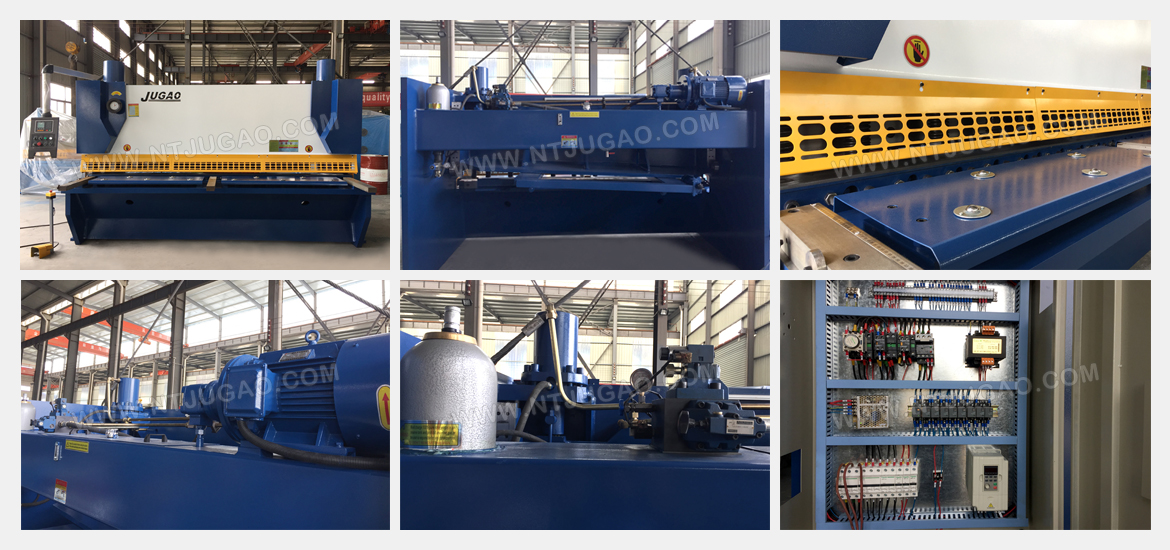

Product details
Performance characteristics
E21S+ Shilin frequency converter
CAN bus communication control is adopted between E21S and Shilin frequency converter with simple wiring, which can realize quick and accurate positioning of keep-off shaft as well as indicating blade gap. It has built-in shearing process time relay function.
1. back gauge control. control for general AC motors.frequency inverter.
2. Intelligent positioning. double programmable digital output. stock counter.
3.Program memory of up to 40 programs. 25 steps per program.
4. One side positioning. retract function. one key backup/ restore of parameters.
5. mm/inch. English Language operation.
▇ STANDARD EQUIPMENTS √ Hardened blades. - Top blades : 2 sides - Bottom blades : 4 sides √ E21S controller. √ 250mm throat depth. √ 600mm motorized backgauge system with 0,1 mm accuracy. √ 800mm side gauge and front support arms. √ Metric and inch rulers. √ Front, side and back safety panels which are suitable for CE norms. √ Sheet sliding system. √ Schneider Electric System. √ Rexroth hydraulic system. √ Hold down cylinders. √ Moveable foot pedal. √ Manual blade gap adjustment. √ Emergency stop button. √ Collapsible finger protection. | ▇ OPTIONAL EQUIPMENTS √ Optional throat depth. √ Front angle gauge. √ Side gauge and front support arms in optional lengths. √ Sheet conveyor and stacking system. √ Front Gauge X1, X2 axis and backgauge X3, X4 axis. √ Optional backgauge stroke. √ Sheet support system for thin sheets. 1- Pneumatic support system. (Lever type) 2- Pneumatic support system. (Monobloc panel type) √ Hydraulic oil cooling and heating system. √ Optional solid table. √ Stainless steel blades. √ Ability to increase stroke amount per minute. √ Light safety system for finger protection. √ Optional alternative colors. √ Coolant system or heater can be placed in electric panel during ambient conditions. √ Double foot pedal. √ Electrical panel or controller can be placed on right side of the machine. √ Laser cutting line. √ Central lubrication system. |
Product parameters
| No | Model | Max cut thickness（mm） | Max cut length（mm） | Ram Stroke（n/min） | Cutting angle（°） | Motor（kw) | Machine Size（mm) |
| 1 | 4x2500 | 4 | 2500 | 20-40 | 0.5-1.5 | 5.5 | 3100x1600x1700 |
| 2 | 4x3200 | 4 | 3200 | 20-40 | 0.5-1.5 | 7.5 | 3800x1800x1700 |
| 3 | 6x2500 | 6 | 2500 | 16-35 | 0.5-1.5 | 7.5 | 3150x1650x1700 |
| 4 | 6x3200 | 6 | 3200 | 14-35 | 0.5-1.5 | 7.5 | 3860x1810x1750 |
| 5 | 6x4000 | 6 | 4000 | 10-30 | 0.51.5 | 7.5 | 4630x2030x1940 |
| 6 | 6x5000 | 6 | 5000 | 10-30 | 0.5-1.5 | 11 | 5660x2050x1950 |
| 7 | 6x6000 | 6 | 6000 | 8-25 | 0.5-1.5 | 11 | 6680x2200x2500 |
| 8 | 8x2500 | 8 | 2500 | 14-30 | 0.5-1.5 | 11 | 3170x1700x1700 |
| 9 | 8x3200 | 8 | 3200 | 12-30 | 0.5-1.5 | 11 | 3870x1810x1780 |
| 10 | 8x4000 | 8 | 4000 | 10-25 | 0.5-1.5 | 11 | 4680x1900x1860 |
| 11 | 8x5000 | 8 | 5000 | 10-25 | 0.5-1.5 | 15 | 5680x2250x2200 |
| 12 | 8x6000 | 8 | 6000 | 8-20 | 0.5-1.5 | 15 | 6800x2350x2700 |
| 13 | 10x2500 | 10 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
| 14 | 10x3200 | 10 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
| 15 | 10x4000 | 10 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
| 16 | 10x5000 | 10 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
| 17 | 10x6000 | 10 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
| 18 | 12x2500 | 12 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
| 19 | 12x3200 | 12 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
| 20 | 12x4000 | 12 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
| 21 | 12x5000 | 12 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
| 22 | 12x6000 | 12 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
| 23 | 12x7000 | 12 | 7000 | 6-20 | 0.5-2.0 | 37 | 7800x2600x3200 |
| 24 | 12x8000 | 12 | 8000 | 6-20 | 0.5-2.0 | 45 | 9100x2800x3400 |
| 25 | 12x10000 | 12 | 10000 | 4-18 | 0.5-2.0 | 55 | 11100x3200x3900 |
| 26 | 12x12000 | 12 | 12000 | 4-18 | 0.5-2.0 | 2x37 | 13200x3950x4800 |
| 27 | 16x2500 | 16 | 2500 | 9-20 | 0.5-2.5 | 22 | 3320x2100x2200 |
| 28 | 16x3200 | 16 | 3200 | 8-20 | 0.5-2.5 | 22 | 4120x2150x2300 |
| 29 | 16x4000 | 16 | 4000 | 8-15 | 0.5-2.5 | 22 | 4760x1900x2560 |
| 30 | 16x5000 | 16 | 5000 | 7-15 | 0.5-2.5 | 30 | 5760x2200x2750 |
| 31 | 16x6000 | 16 | 6000 | 6-15 | 0.5-2.5 | 37 | 6880x2480x3000 |
| 32 | 16x8000 | 16 | 8000 | 5-15 | 0.5-2.5 | 55 | 9120x3000x3800 |
| 33 | 16x10000 | 16 | 10000 | 4-15 | 0.5-3.0 | 2x37 | 11200x3400x4000 |
| 34 | 16x12000 | 16 | 12000 | 3-12 | 0.5-3.0 | 2x45 | 13300x4300x5800 |
| 35 | 20x2500 | 20 | 2500 | 7-20 | 0.5-3.0 | 30 | 3300x2050x2440 |
| 36 | 20x3200 | 20 | 3200 | 6-20 | 0.5-3.0 | 30 | 4000x2160x2540 |
| 37 | 20x4000 | 20 | 4000 | 5-15 | 0.5-3.0 | 30 | 4930x2300x2710 |
| 38 | 20x5000 | 20 | 5000 | 4-15 | 0.5-3.0 | 55 | 5860x2400x3150 |
| 39 | 20x6000 | 20 | 6000 | 4-15 | 0.5-3.0 | 55 | 6100x2650x3375 |
| 40 | 20x8000 | 20 | 8000 | 4-15 | 1.0-2.5 | 2x37 | 9120x3400x3800 |
| 41 | 20x10000 | 20 | 10000 | 4-14 | 1.0-2.5 | 2x45 | 11200x4300x5800 |
| 42 | 20x12000 | 20 | 12000 | 3-12 | 1.0-2.5 | 2x55 | 13380x4500x6100 |
| 43 | 25x2500 | 25 | 2500 | 6-15 | 1.0-3.5 | 37 | 3300x2000x2650 |
