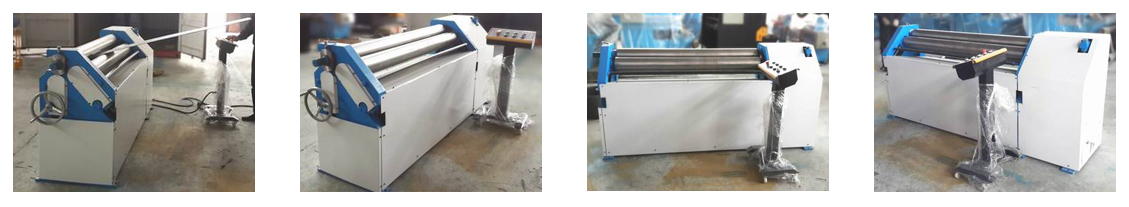

W11F 3 rollers mechanical plate rolls
  • Product Details

  •  Product video


     Product details

     Performance characteristics

        1，Initial pinch rolls with pre-bending；

        2，Two rolls powered by gearbox drive system；

       3，Swing out top roller enables cylinder to be removed；

       4，Safety wire interlock system with emergency shut-off；

       5，Precision ground rolls with wiring grooves；

       6，Includes a conical bending guide roller；

       7，Mobile foot pedal control.

    Product parameters


    Type

    Max. Thickness

    (mm)

    Max. Bending widh

    (mm)

    Yield limit（Mpa）

    Min. Bending

    diameter

    (mm)

    Upper roller

    diameter

    (mm)

    Down roller

    diameter

    (mm)

    Side roller

    diameter

    (mm)

    Motor power

    （KW)

    W11F-2x1000210002451601101101101.5
    W11F-3x1200312002451801201201201.5
    W11F-2x2000220002452501301301302.2
    W11F-4x1000410002453001301301303
    W11F-4x1500415002453001351351353
    W11F-4x2000420002453501501501503
    W11F-6x1000610002453501401401403
    W11F-6x1500615002454001501501504
    W11F-6x2000620002454001601601605.5

     Product video


     Product details

     Performance characteristics

        1，Initial pinch rolls with pre-bending；

        2，Two rolls powered by gearbox drive system；

       3，Swing out top roller enables cylinder to be removed；

       4，Safety wire interlock system with emergency shut-off；

       5，Precision ground rolls with wiring grooves；

       6，Includes a conical bending guide roller；

       7，Mobile foot pedal control.

    Product parameters


    Type

    Max. Thickness

    (mm)

    Max. Bending widh

    (mm)

    Yield limit（Mpa）

    Min. Bending

    diameter

    (mm)

    Upper roller

    diameter

    (mm)

    Down roller

    diameter

    (mm)

    Side roller

    diameter

    (mm)

    Motor power

    （KW)

    W11F-2x1000210002451601101101101.5
    W11F-3x1200312002451801201201201.5
    W11F-2x2000220002452501301301302.2
    W11F-4x1000410002453001301301303
    W11F-4x1500415002453001351351353
    W11F-4x2000420002453501501501503
    W11F-6x1000610002453501401401403
    W11F-6x1500615002454001501501504
    W11F-6x2000620002454001601601605.5
