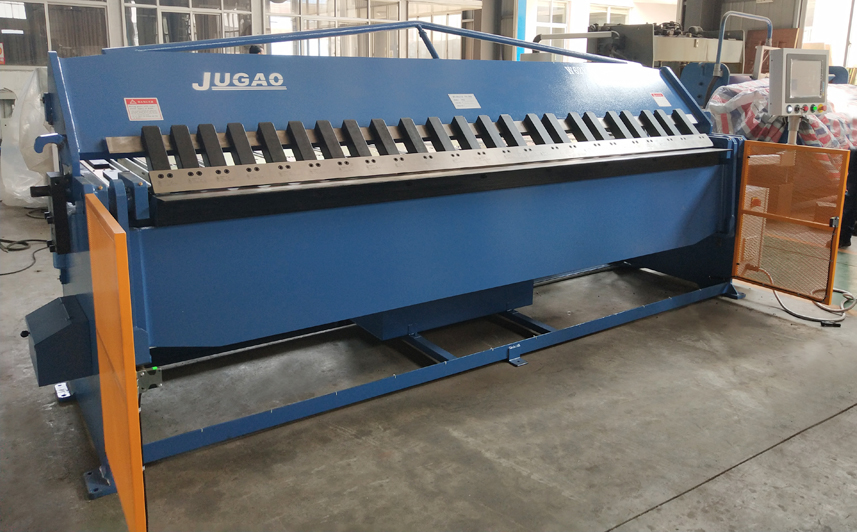

W62Y/K Hydraulic pan brakes for stainless steel sheet bending and folding machine
  • Product Details
  •   Product video





    Product details


     Performance characteristics


       1. Hydraulic clamp and unclamp from foot switch, this allows one man to operate machine and hold material in both hands; Clamping is limited to 10mm increments for safety. Unclamp from foot switch.
       2. Rapid head adjustment allows easy change different size material, by moving the handles, Adjustable to suit special jobs .
       3. Fingers clamp blade are high carbon steel, Apron blade high tensile steel.
       4. Electrics low 24 volts foot switch. Overload protected.
       5. Clamping provided by large rams, Oil delivered to rams through steel pipes this is to minimize expansion of hydraulic hose when working at full capacity.
       6. Unclamp is controlled, to allow the operator to regulate the open height
       7. Bed head and apron are unique design, to provide maximum strength. To give a straight fold.
       8. Automatic and manual control. In auto cycle after clamping start auto a[rpm will come up to angle set, then apron will go down and the head will unclamp to amount set by operator.
       9. Electric components is.SIEMENS

    Product parameters


    Model

    Folding thickness

    (mm)

    Folding Width

    (mm)

    Evolving angle

    (°)

    Max open height

    (mm)

    Motor power

    (mm)

    Dimension

    (mm)

    W62Y-3X2500

    3

    2500

    0-120

    110

    4

    3700x1640x1650

    W62Y-3X3200

    3

    3200

    0-120

    110

    4

    4400x1640x1650

    W62Y-4X2500

    4

    2500

    0-120

    110

    4

    3750x1640x1650

    W62Y-4X3200

    4

    3200

    0-120

    110

    4

    4450x1640x1650

    W62Y-6X2500

    6

    2500

    0-120

    110

    11

    3900x1640x1650
