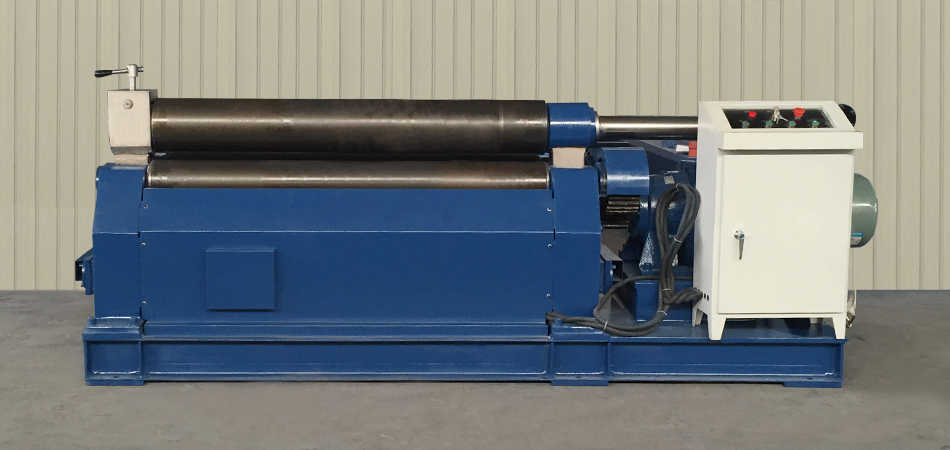

W11 3 rollers Mechanical plate rolls

Product Details

Product video

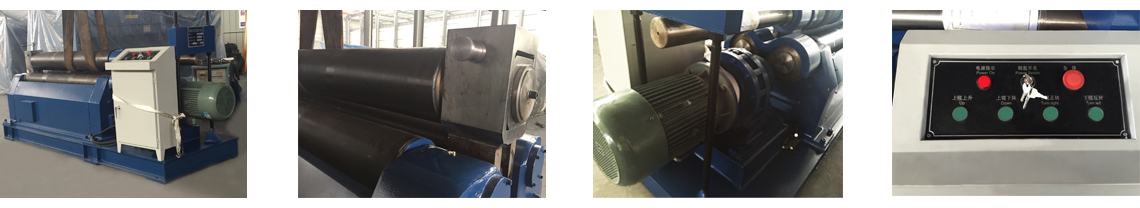

Product details

Performance characteristics

1, The W11 is the latest evolution of the traditional three-roll double pinch plate-bending machine. It has been designed to cover the needs of the fabrication shop: Strength, User Friendliness, and Versatility. ERMAK’s experience in manufacturing heavy and super-heavy duty machines is applied to the design of the W11 series of plate rolls.

2. The W11 series is the most precise 3-roll machine in its category. The RGS design reduces to a minimum the distance between the bending points guaranteeing higher bending accuracy.

3, The MCS bearing system, incorporating 4 independent bearings for each bending roll is a standard feature of the W11. It guarantees higher reliability (higher capacity of load absorption) and increases the range for tilting the side rolls, resulting in more versatility, when rolling cones.

Product parameters

Specification	Max roll Thickness	Max roll width	Yield strength	Roll speed	Min roll dia	Upper roller dia	down rollers dia	bottom rollers distance	Motor	Dimension
Specification	(mm)	(mm)	(Mpa)	(m/min)	(mm)	(mm)	(mm)	(mm)	(kw)	(mm)
W11-4X1500	4	1500	245	5	300	150	140	185	3	2900x720x1000
W11-6X1500	6	1500	245	5	380	160	140	220	4	2900x720x1000
W11-6X2000	6	2000	245	4.5	380	170	160	260	5.5	3650x820x1050
W11-6X3200	6	3200	245	4.5	380	220	180	280	7.5	4850x1100x1100
W11-8X2000	8	2000	245	4.5	400	185	170	260	5.5	3700x820x1050
W11-8X2500	8	2500	245	4.5	550	240	180	280	7.5	4150x1100x1100
W11-12X2000	12	2000	245	4.5	550	240	180	280	7.5	3650x1100x1100
W11-12X2500	12	2500	245	4.5	600	260	220	320	11	4200x920x1200
W11-12X3000	12	3000	245	4	700	280	240	360	11	4900x1300x1300
W11-16X2000	16	2000	245	4	600	260	220	320	7.5	3700x920x1200
W11-16X2500	16	2500	245	4	700	280	240	360	11	4400x1300x1300
W11-16X3200	16	3200	245	4	850	340	260	430	15	5300x1400x1400
W11-20X2000	20	2000	245	4	700	280	240	360	11	3900x1300x1300
W11-20X2500	20	2500	245	4	850	340	260	430	15	4600x1400x1400
W11-25X2000	25	2000	245	4	850	330	270	430	15	4100x1400x1400
W11-25X2500	25	2500	245	4	900	370	270	480	22	5600x1550x2000
W11-30X2500	30	2500	245	4	1200	420	360	550	30	5760x1700x2110
W11-30X3000	30	3000	245	4	1200	450	390	600	37	5400x1700x2210
W11-30X3200	30	3200	245	4	1200	480	400	600	37	7600×2300×2600
W11-40X2000	40	2000	245	4	1200	500	400	600	37	6400×2300×2800
W11-40X2500	40	2500	245	4	1400	480	400	600	37	6900×2300×2800
W11-40X3000	40	3000	245	4	1600	500	400	350	45	8000×1980×2250
W11-50X3000	50	3000	245	4	2000	600	480	700	60	9900×3100×3500
W11-60X3000	60	3000	245	4	2000	700	560	800	75	9700×3200×2700
