Product video

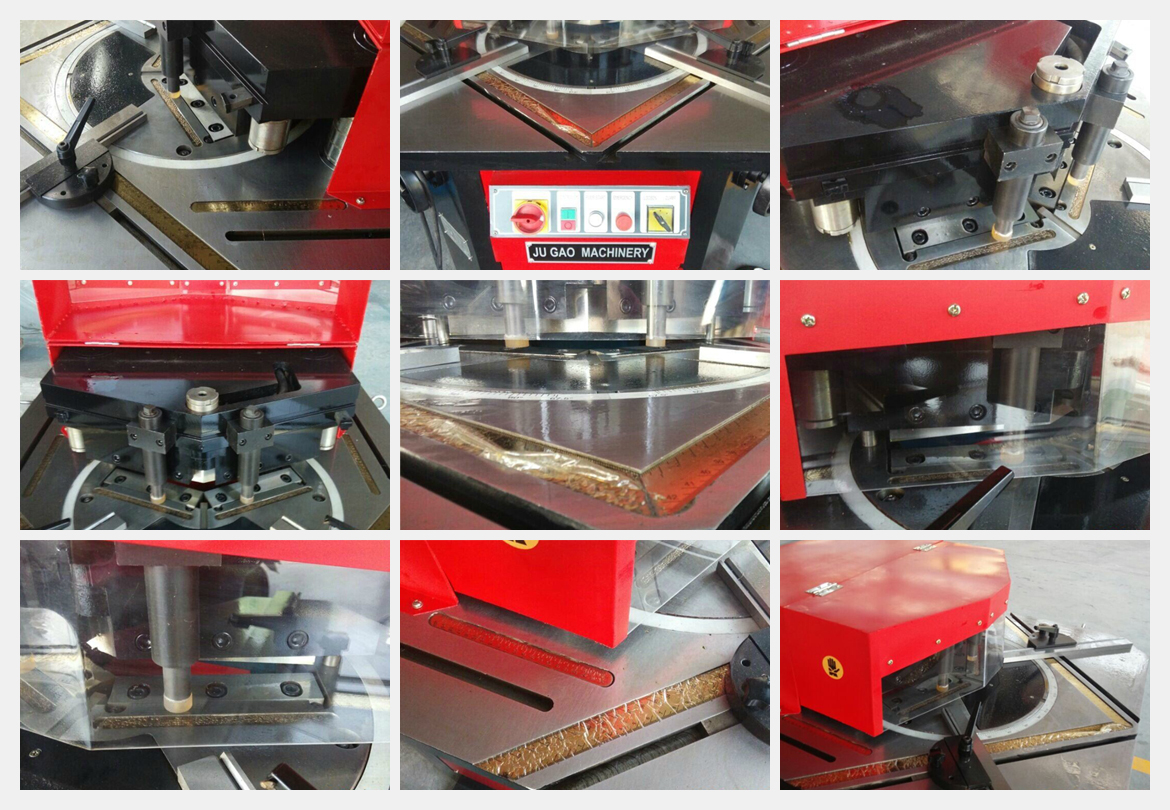

Product details
Performance characteristics

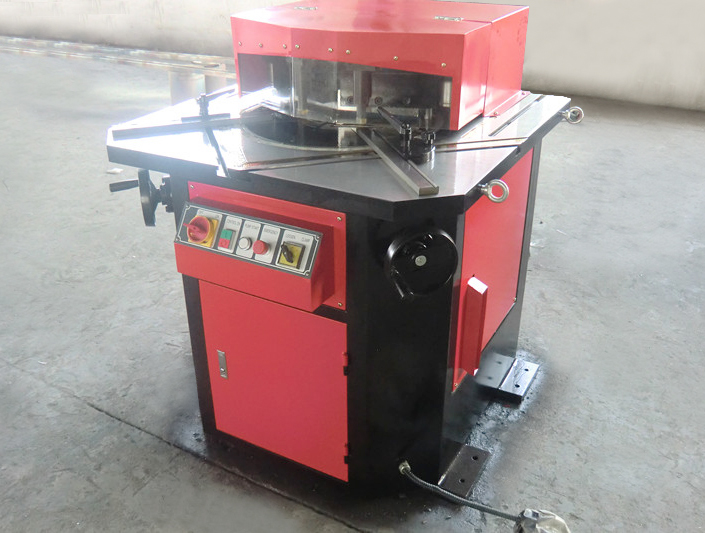

The machine is hydraulic driven and constructed with steel welded plate. Giving a rigid working platform. The machine can be adjusted through a range of 30° -145° . It is suitable for using in various notching industries.
Product parameters
Model | QC28Y-3X200 | QC28Y-4X200 | QC28Y-6X200 | |
Max Notching Thickness (mm) | Mild Steel | 3 | 4 | 6 |
Stainless Steel | 1.5 | 2 | 3 | |
Min Notching Thickness (mm) | Mild Steel | 0.5 | 0.5 | 0.5 |
Stainless Steel | 0.5 | 0.5 | 0.5 | |
Notching Length (mm) | 200 | 200 | 200 | |
Notching Angle Range | 40°~135° | 40°~135° | 90° | |
Main Motor Power (kw) | 4 | 4 | 5.5 | |
Dimension (mm) | 1500x1000x1400 | 1500x1000x1400 | 1500x1000x1400 | |
Net Weight (kgs) | 1100 | 1350 | 1500 |
